Naemon cluster configuration and environment scaling

Overview

Scaling a Naemon environment means distributing monitoring work across multiple Naemon instances instead of running every check on a single server. Energy Monitor uses Merlin to exchange monitoring data between Naemon processes and to support redundancy and load distribution.

The topology should be selected according to the required outcome:

• Peer ↔ peer provides redundancy. Both nodes have equivalent roles, exchange monitoring state, and can share responsibility for the same configuration.

• Master ↔ poller provides horizontal scaling. The master manages the monitoring configuration, while the poller executes checks for assigned host groups and returns the results.

• Master + redundant master + poller combines high availability with workload distribution. Two peer nodes act as redundant masters, while a poller handles checks assigned to it.

Before starting, make sure that every node can resolve the other nodes by the hostnames used in the Merlin configuration and that SSH connectivity is available. Run the following command at any stage to inspect cluster status:

mon node status

Warning: The asmonitor mon oconf push <node> command overwrites the existing object configuration on the destination node. Back up any local configuration that must be retained before running it.

Peer ↔ peer

Relationship description

Peer nodes are equal members of the cluster. They exchange monitoring events and state information and provide redundancy for one another. A peer topology is useful when monitoring must remain available after one node fails. The peers must use a consistent object configuration; the procedure below copies the configuration from peer01 to peer02.

The example uses these nodes:

Node	IP address	Role
peer01	192.0.2.11	Peer
peer02	192.0.2.12	Peer

Note: The node names must resolve to their corresponding IP addresses. Add the entries shown below to /etc/hosts only when the names are not resolved by DNS. Alternatively, specify a literal IP address with the Merlin address parameter while retaining a descriptive logical node name.

Configure peer01

1. Add peer02 to /etc/hosts if required:

   192.0.2.12 peer02


2. Add peer02 to the Merlin node configuration:

   mon node add peer02 type=peer address=192.0.2.12


3. Push the SSH keys used by the administrative and asmonitor accounts:

   mon sshkey push --type=peer
   asmonitor mon sshkey push --type=peer


4. Restart the monitoring services:

   mon restart


Configure peer02

1. Add peer01 to /etc/hosts if required:

   192.0.2.11 peer01


2. Add peer01 to the Merlin node configuration:

   mon node add peer01 type=peer address=192.0.2.11


3. Push the SSH keys used by the administrative and asmonitor accounts:

   mon sshkey push --type=peer
   asmonitor mon sshkey push --type=peer


4. Restart the monitoring services:

   mon restart


Verify the status on both nodes:

mon node status

Synchronize the object configuration

To make both nodes operate on the same monitoring configuration, push the configuration from one peer to the other. For example, run the following on peer01 to replace the configuration on peer02:

asmonitor mon oconf push peer02

Restart all nodes after the configuration has been transferred:

mon node ctrl --self -- mon restart

Master ↔ poller

Relationship description

In a master-poller topology, the master is the central configuration and coordination node. A poller is responsible for executing checks for one or more assigned host groups and sending their results back to the master. This reduces the check-execution load on the master and makes it possible to monitor more hosts or remote network segments.

The example uses these nodes:

Node	IP address	Role
master01	192.0.2.11	Master
poller01	192.0.2.21	Poller

Note: The node names must resolve to their corresponding IP addresses. Add the entries shown below to /etc/hosts only when the names are not resolved by DNS. Alternatively, specify a literal IP address with the Merlin address parameter while retaining a descriptive logical node name.

Configure name resolution

On poller01, add the master:

192.0.2.11 master01

On master01, add the poller:

192.0.2.21 poller01

Configure the relationship

Run the following steps on master01 unless stated otherwise.

1. Confirm that the host group to be assigned to the poller exists:

   mon query ls hostgroups -c members name="$HOSTGROUP_NAME"


2. Add the poller and assign the host group to it:

   mon node add poller01 type=poller hostgroup="$HOSTGROUP_NAME" takeover=no address=192.0.2.21


3. Push the required SSH keys to the poller:

   mon sshkey push poller01
   asmonitor mon sshkey push poller01


4. Add master01 to the poller’s node configuration:

   mon node ctrl poller01 mon node add master01 type=master connect=no address=192.0.2.11


5. Restart Naemon on the master:

   systemctl restart naemon


6. Push the object configuration to the poller:

   asmonitor mon oconf push poller01


7. Restart the poller:

   mon node ctrl poller01 mon restart

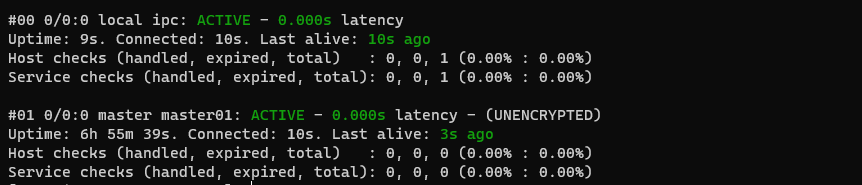

Verify the status on both instances:

mon node status

Master + redundant master + poller

Environment description

This topology combines the two preceding models. master01 and master02 form a peer cluster and therefore provide redundant master functionality. Both masters know about poller01, while the poller knows about both masters. The poller executes checks for the assigned host group; the peer pair exchanges monitoring state and keeps the central monitoring tier available if one master fails.

The example uses these nodes:

Node	IP address	Role
master01	192.0.2.11	Master and peer of master02
master02	192.0.2.12	Redundant master and peer of master01
poller01	192.0.2.21	Poller

Note: The node names must resolve to their corresponding IP addresses. Add the entries shown below to /etc/hosts only when the names are not resolved by DNS. Alternatively, specify a literal IP address with the Merlin address parameter while retaining a descriptive logical node name.

First, configure master01 and master02 as peers by following the procedure in Peer ↔ peer, using the master hostnames shown above.

Configure name resolution

On master01, add:

192.0.2.12 master02
192.0.2.21 poller01

On master02, add:

192.0.2.11 master01
192.0.2.21 poller01

On poller01, add:

192.0.2.11 master01
192.0.2.12 master02

Connect master01 to the poller

Run the following commands on master01:

1. Confirm that the host group exists:

   mon query ls hostgroups -c members name="$HOSTGROUP_NAME"


2. Add the poller and assign the host group to it:

   mon node add poller01 type=poller hostgroup="$HOSTGROUP_NAME" takeover=no address=192.0.2.21


3. Push the SSH keys:

   mon sshkey push poller01
   asmonitor mon sshkey push poller01


4. Register master01 on the poller:

   mon node ctrl poller01 mon node add master01 type=master connect=no address=192.0.2.11


5. Restart Naemon on master01:

   systemctl restart naemon


6. Push the object configuration to the poller:

   asmonitor mon oconf push poller01


7. Restart the poller:

   mon node ctrl poller01 mon restart


Connect master02 to the poller

Run the following commands on master02:

1. Confirm that the host group exists:

   mon query ls hostgroups -c members name="$HOSTGROUP_NAME"


2. Add the poller and assign the host group to it:

   mon node add poller01 type=poller hostgroup="$HOSTGROUP_NAME" takeover=no address=192.0.2.21


3. Push the SSH keys:

   mon sshkey push poller01
   asmonitor mon sshkey push poller01


4. Register master02 on the poller:

   mon node ctrl poller01 mon node add master02 type=master connect=no address=192.0.2.12


5. Restart Naemon on master02:

   systemctl restart naemon


6. Push the object configuration to the poller:

   asmonitor mon oconf push poller01


7. Restart the poller:

   mon node ctrl poller01 mon restart


Complete the poller configuration

On poller01, push the SSH keys to both masters:

mon sshkey push --type=master
asmonitor mon sshkey push --type=master

Finally, run mon node status on all three nodes and confirm that both master connections and the poller connection are active.

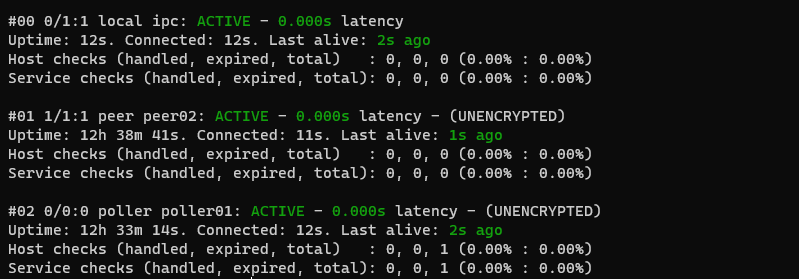

• master01:

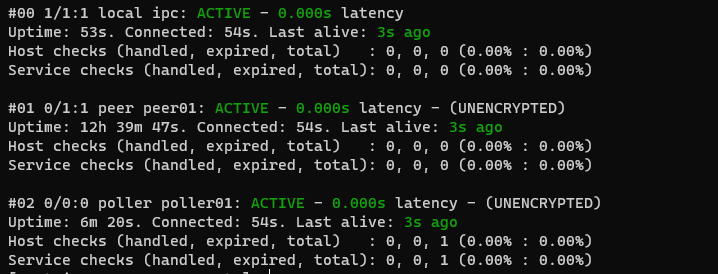

• master02:

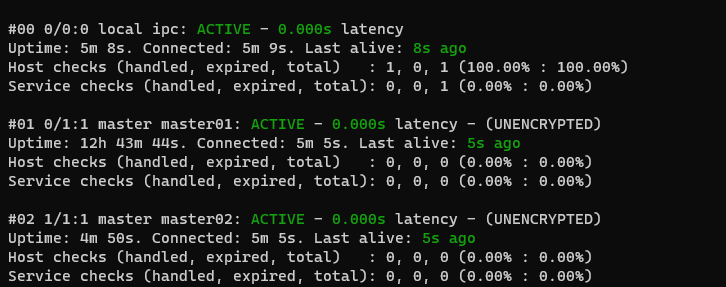

• poller01:
